Lectrostatic Wheel Coating Oven – Single Wheel (2 Transport Carts Included Set

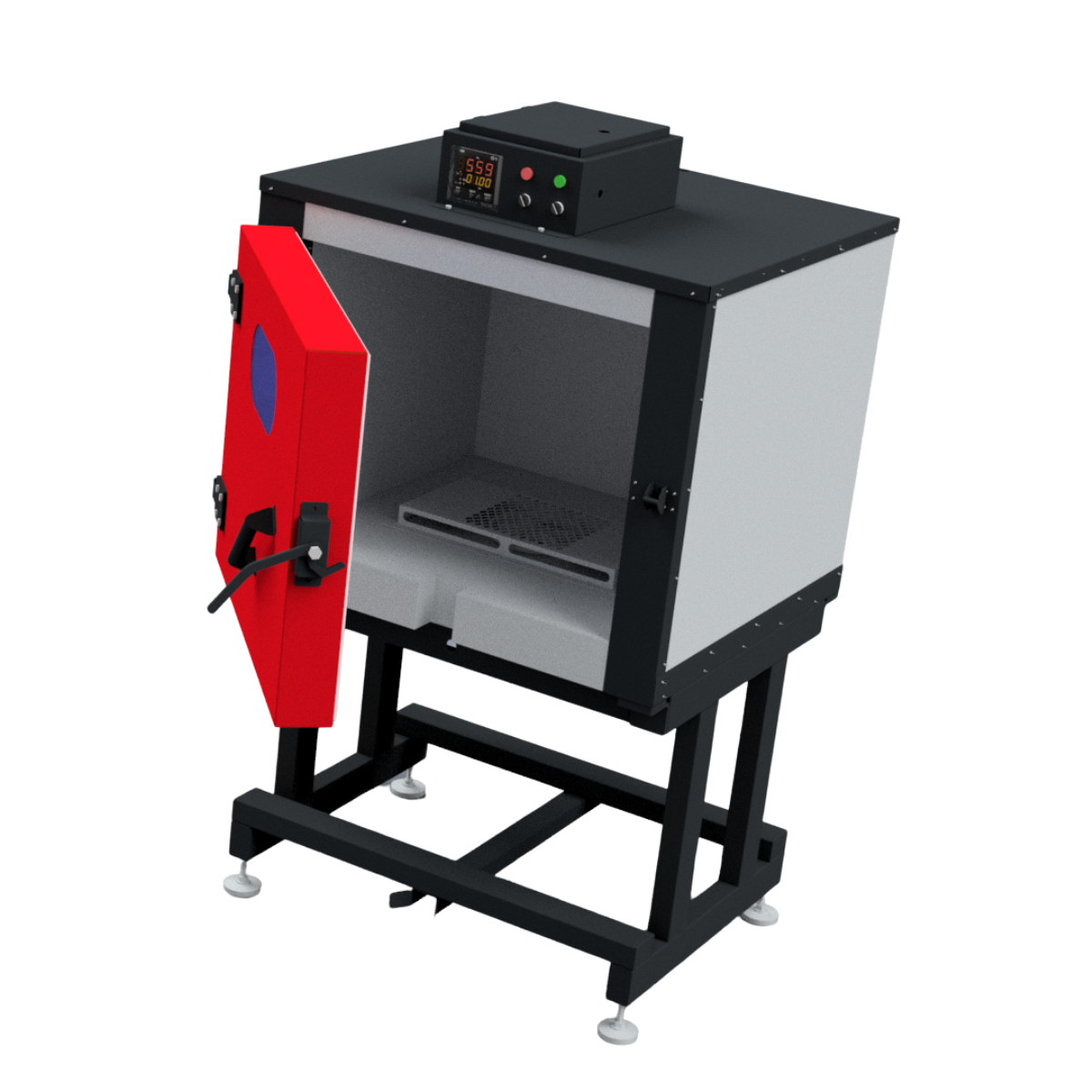

The Electrostatic Wheel Coating Oven is a compact, single-wheel capacity solution designed for wheel painting and powder coating applications. Its small footprint allows easy installation in limited spaces, making it ideal for workshops seeking efficient space utilization.

With low energy consumption, it helps reduce operating costs while delivering consistent performance. The advanced air circulation system ensures uniform heat distribution, enabling even curing across the wheel surface.

Technical Specifications
Capacity: 1 Wheel
External Dimensions: 960 × 1085 × 1750 mm
Internal Dimensions: 750 × 750 × 600 mm
Heating Capacity: 2.6 kW Resistance Heater, 100 mm Rock Wool Insulation
Oven Type: Electrostatic Powder Coating Oven
Body Structure: Heavy-Duty Steel Construction
Door System: Single Front Door
Heat Distribution: Homogeneous Air Circulation System
Control Panel: Analog or Digital (Optional)
Insulation: High-Density Thermal Insulation
Energy Efficiency: Low Consumption with High Performance
Application Area: Wheel Painting and Surface Coating Processes
